Common Powder Coating Production Problems and the Equipment That Solves Them

Powder coating production problems often look small at first. A little more fine powder than usual. A batch that does not flow as smoothly. Sheet material that does not feed well into the grinding section. One order looks stable, then the next batch needs extra checking. For a factory, these are not small things. They affect output, labor time, material use, and customer confidence.

You can adjust a formula, of course. But many problems come from the production process itself. Mixing, extrusion, cooling, grinding, classification, and weighing all leave their mark on the final powder. If one part of the line is weak, the final powder will show it.

Yantai Jatchen Powder Coating Processing Equipment Co., Ltd. is a professional supplier of powder coating production equipment with practical experience in high-quality machines and complete production lines. The company works with mixers, twin screw extruders, cooling belts, grinding systems, laboratory equipment, particle size optimization systems, automatic weighing systems, and customized lean production lines. For factories that care about final powder fineness and particle size control, the Grinding Mill – ACM GRINDING SYSTEM is one of the key products to look at. It is built for high-speed grinding, air classifying, cyclone separating, sifting, and fine powder collecting, which makes it a useful answer to several common production problems.

Why Powder Coating Problems Often Start Before the Final Powder

A finished powder problem is rarely caused by one step only. It is usually built up slowly. Raw materials are mixed, moved into extrusion, cooled into sheets or chips, then sent to grinding. If each step is not steady, the final powder becomes harder to control.

Uneven Mixing Creates Early Batch Risk

The mixer prepares the base. Resins, curing agents, pigments, fillers, and additives must be distributed evenly before extrusion. If this early step is weak, later equipment has to work harder, and sometimes it still cannot fully correct the problem.

For this stage, a sealed and efficient mixer matters. The company’s product range includes high speed mixer equipment designed for efficient and homogeneous mixing. Features such as double seals, no powder leakage, automatic timing, and optional cooling water jacket help reduce the kind of small process issues that later turn into batch differences.

Poor Cooling Makes Grinding Harder

After extrusion, the material needs to cool and form into suitable sheets or chips. If the cooled material is too thick, too uneven, or not easy to crush, the grinding system may not receive steady feed. That can reduce grinding efficiency and make particle size harder to control.

Cooling belts such as water cooling belt equipment help prepare the material for the grinding stage. A stable cooling and sheet-forming process gives the grinding mill a better starting point, which is easy to overlook but very important in daily production.

Grinding Turns Process Problems Into Final Quality

Grinding is where many earlier process issues become visible. If the material enters the mill unevenly, the finished powder may show a wide particle size range, poor flow, or more fine powder than expected.

This is why the Grinding Mill – ACM GRINDING SYSTEM deserves a central place in this topic. It is not just a crushing machine. It combines grinding, classification, separation, sifting, and collection in one system, so it can help factories control final powder quality more closely.

How Particle Size Problems Affect Powder Coating Quality

Particle size is one of the most practical quality points in powder coating production. If it is not controlled well, you may see handling issues, unstable output, and more waste. A factory can feel this very quickly in daily work.

Too Much Fine Powder Reduces Production Stability

Fine powder is not always useful powder. Too much of it can affect material handling, increase cleaning work, and reduce recovery value. It may also make the finished powder less stable during storage and transfer.

The ACM grinding system is designed with fine powder collecting and cyclone separating functions. This matters because it helps factories manage the powder stream instead of simply grinding material without control. A cleaner grinding process means fewer surprises after the powder leaves the mill.

Oversized Particles Create Extra Work

Large particles or a wide particle range can cause rough appearance, unstable flow, and more screening pressure. In many factories, this leads to extra checking, more recycled material, and slower output.

The ACM grinding system with adjustable particle size helps solve this problem through air classifying and adjustable classifier speed. The classifier speed range can be adjusted to match different powder coating needs, so you are not locked into one fixed grinding result.

Narrower Particle Distribution Makes Production Easier

A tighter particle size range makes the final powder easier to manage. It helps with batch control and gives the production team a clearer process window. This is especially useful when you produce higher-grade powder or need stable repeat orders.

For this level of work, the ACM grinding system can also work with a classifier cyclone PSD optimization system. That combination is useful when particle size distribution becomes a core part of the product value, not just a lab number.

Which Equipment Solves Grinding Problems Best?

When the main problem is final powder fineness, fine powder control, or grinding efficiency, the machine choice becomes very direct. You need a mill system built for powder coating production, not a general machine forced into the wrong job.

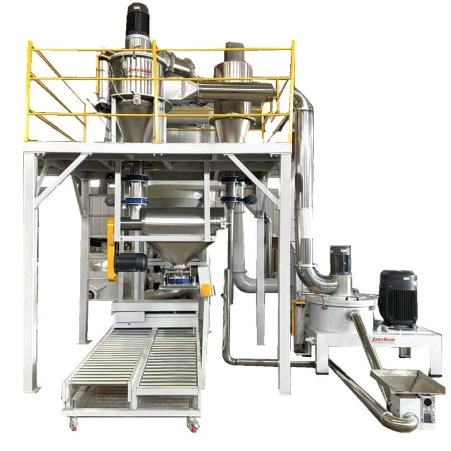

Grinding Mill – ACM GRINDING SYSTEM for Final Powder Fineness

The Grinding Mill – ACM GRINDING SYSTEM is designed for powder coating grinding with high-speed grinding, air classifying, cyclone separating, sifting, and fine powder collecting. It is a strong fit when your factory wants better final powder control.

This product is especially suitable for factories dealing with unstable particle size, too much fine powder, high screening pressure, or inconsistent finished powder. It helps move grinding from a rough crushing step to a more controlled powder-making step.

Adjustable Models for Different Production Needs

The ACM series includes different model options, such as ACM04, ACM07, ACM10, ACM15, ACM20, ACM30, ACM40, and ACM50. The output range covers smaller production needs and larger production lines, so the machine can be matched to real capacity.

For example, smaller models are useful for low-volume work or trial production, while larger systems can support steady plant output. You should choose by actual production volume, not by the biggest number on a specification sheet.

High Recovery Rate and Lower Running Pressure

The ACM grinding system is listed with a high recovery rate of at least 97%. It also has low noise, low specific energy consumption, recipe management, storage and call function, programmable touch screen, and easy cleaning and maintenance.

These features speak to normal factory concerns. Less waste. Easier cleaning. Better repeat work. Lower energy pressure during daily operation. For a domestic powder coating producer, those details often matter more than one single output figure.

What Other Equipment Helps Solve Production Problems?

Grinding is important, but it is not alone. A good grinding system performs better when the line before it is also stable. If the material is badly mixed or poorly cooled, the mill has to deal with problems it should not have to handle.

Mixers Help Reduce Early Material Problems

A high speed mixer supports uniform raw material preparation. If raw materials are not well mixed, later extrusion and grinding cannot produce steady results easily.

The company’s powder coating equipment range includes mixing equipment for different capacity needs. This makes it easier to build a line where raw material preparation matches the next process instead of slowing it down.

Twin Screw Extruders Support Better Material Fusion

The twin screw extruder is used after mixing. It helps materials melt and combine into a more uniform form before cooling. Stable feeding and zone control are important here because they affect sheet quality and later grinding.

When you plan the line, you should not separate extrusion from grinding. The grinder receives what the extruder and cooling belt prepare. Better upstream control usually means less pressure on the grinding mill.

Cooling Belts Prepare Material for Smooth Grinding

Cooling belts turn extruded material into sheets or chips suitable for grinding. A stable cooling belt helps control sheet thickness and cooling result. This makes the material easier to crush and feed.

For factories upgrading production, this step can solve many hidden issues. The grinder will work more smoothly when the incoming chips are steady, clean, and suitable for the mill chamber.

When You Should Upgrade the Whole Production Line

Sometimes one machine can solve the main problem. Sometimes the line itself needs adjustment. If the same issue keeps coming back after small fixes, the cause may be equipment matching.

One Machine Is Becoming the Bottleneck

If the mixer is fast but the extruder cannot keep up, output drops. If extrusion is stable but cooling is weak, grinding suffers. If grinding capacity is too small, the line waits.

A balanced line is better than one oversized machine. The company’s solution center gives a clearer way to think about lab lines and production lines with different capacity ranges. This is useful when you need to match output across the full process.

Changeover Takes Too Much Time

Many factories produce more than one color or formula. If cleaning takes too long, real output drops even when machine capacity looks good on paper.

Equipment with easy cleaning, recipe management, and practical maintenance design can reduce changeover pressure. The ACM grinding system has easy cleaning and maintenance features, which is helpful when batch switching is part of daily work.

Particle Size Control Is Now a Selling Point

If your customers care about stable powder quality, particle size control is no longer a back-end detail. It becomes part of how you compete.

This is where a grinding system, classifier cyclone PSD optimization system, and automatic weighing system can work together. A good line does not only make powder faster. It makes powder more repeatable.

Why Choose Yantai Jatchen Powder Coating Processing Equipment Co., Ltd.

At this point, the choice is not only about buying a grinding mill. You need equipment that fits your product, output, workshop, and production habits. You also need a supplier that knows powder coating production as a full process.

Practical Coverage From Mixing to Grinding

Yantai Jatchen Powder Coating Processing Equipment Co., Ltd. covers key equipment used in powder coating production, including mixers, extruders, cooling belts, compact rollers, grinding systems, laboratory equipment, particle size optimization systems, and automatic weighing systems.

This product coverage helps when you are not only replacing one machine but also checking whether the whole line makes sense. You can compare product options, then build a more balanced setup for domestic production.

ACM Grinding System Fits Quality-Focused Powder Production

The Grinding Mill – ACM GRINDING SYSTEM fits the most common final-stage problems: particle size instability, too much fine powder, rough powder behavior, high screening pressure, and uneven batch quality.

If your factory wants a cleaner grinding process and better final powder control, the ACM system should be on your shortlist. It connects directly with the pain points that production teams face every day.

Service and Contact Support Make Planning Easier

Before you choose a model, you should talk through output, raw material type, workshop layout, cleaning frequency, and future production needs. The company’s service support page is useful for this kind of preparation.

When you are ready to discuss equipment selection, line planning, or a grinding system configuration, you can contact the company through its contact page. Clear early communication helps avoid a machine that works alone but does not fit the full line.

Conclusion

Common powder coating production problems are often linked. Uneven mixing affects extrusion. Poor cooling affects grinding. Weak grinding control affects final powder size, flow, and batch stability. That is why you should look at the whole process, not only the finished powder.

For particle size problems, excess fine powder, low grinding efficiency, and unstable final powder quality, the Grinding Mill – ACM GRINDING SYSTEM is the product to focus on. It combines high-speed grinding, air classifying, cyclone separating, sifting, and fine powder collecting, while also offering adjustable particle size, high recovery rate, recipe management, and easy cleaning.

Yantai Jatchen Powder Coating Processing Equipment Co., Ltd. can support you with single equipment and complete line planning. For domestic powder coating producers who want fewer repeated problems, better grinding control, and a more balanced production line, the company’s equipment range, service support, and contact channel give you a practical place to start.

FAQ

Q1: What Equipment Solves Powder Coating Particle Size Problems?

A1: The Grinding Mill – ACM GRINDING SYSTEM is suitable for particle size control because it combines grinding, air classifying, cyclone separating, sifting, and fine powder collecting.

Q2: Why Does Fine Powder Become a Production Problem?

A2: Too much fine powder can affect handling, cleaning work, recovery value, and batch stability. A controlled grinding and classification system helps reduce this issue.

Q3: Can One Grinding Mill Fit Different Production Outputs?

A3: Yes. The ACM series includes several models for different output needs, so you can choose based on actual production volume and line capacity.

Q4: What Other Equipment Should Work With a Grinding System?

A4: A complete line may include a mixer, twin screw extruder, cooling belt, grinding system, particle size optimization system, and automatic weighing equipment.

Q5: Why Choose Yantai Jatchen Powder Coating Processing Equipment Co., Ltd.?

A5: The company focuses on powder coating production equipment and can support both single machines and customized production lines. Its Grinding Mill – ACM GRINDING SYSTEM is especially useful for factories that need better final powder control.
