Jatchen manufactures a complete range of powder coating production equipment, from high speed mixers and twin screw extruders to air classification grinding (ACM) systems and classifier cyclones. Every machine is built for stable output, fine particle size distribution, and easy daily operation, and can be configured into a full powder coating production line sized to your capacity.

Dry Particle Size Analyzer – TESTING INSTRUMENT | Jatchen The LS‑909E laser particle size analyzer is a brand‑new dry‑measurement instrument developed by OMEC. Built on proven technology and upgraded optical‑signal platforms, it features low maintenance and excellent testing performance, delivering high cost‑effectiveness for the powder industry.
Temperature Tracker – TESTING INSTRUMENT | Jatchen The furnace temperature tracker is used to monitor and record real‑time temperature curves inside furnaces. Equipped with K‑type thermocouples, it supports 4‑channel or 6‑channel measurement, with a temperature range of ‑50℃ to 1370℃ and accuracy of ±0.5℃. It validates coating curing conditions, identifies furnace faults, optimizes process parameters and reduces defective rework. Optional 8‑16‑channel and wireless versions are available. Compact...
Crushing Jar – TESTING INSTRUMENT | Jatchen Crushing jar is a specialized container used in laboratory sample preparation, mainly for crushing, grinding, mixing and homogenizing solid materials. It is widely matched with crushers, ball mills and grinding equipment. Made of high-strength materials including stainless steel, the crushing jar features excellent wear resistance, corrosion resistance and sealing performance, ensuring no contamination during sample processing. It is available in...

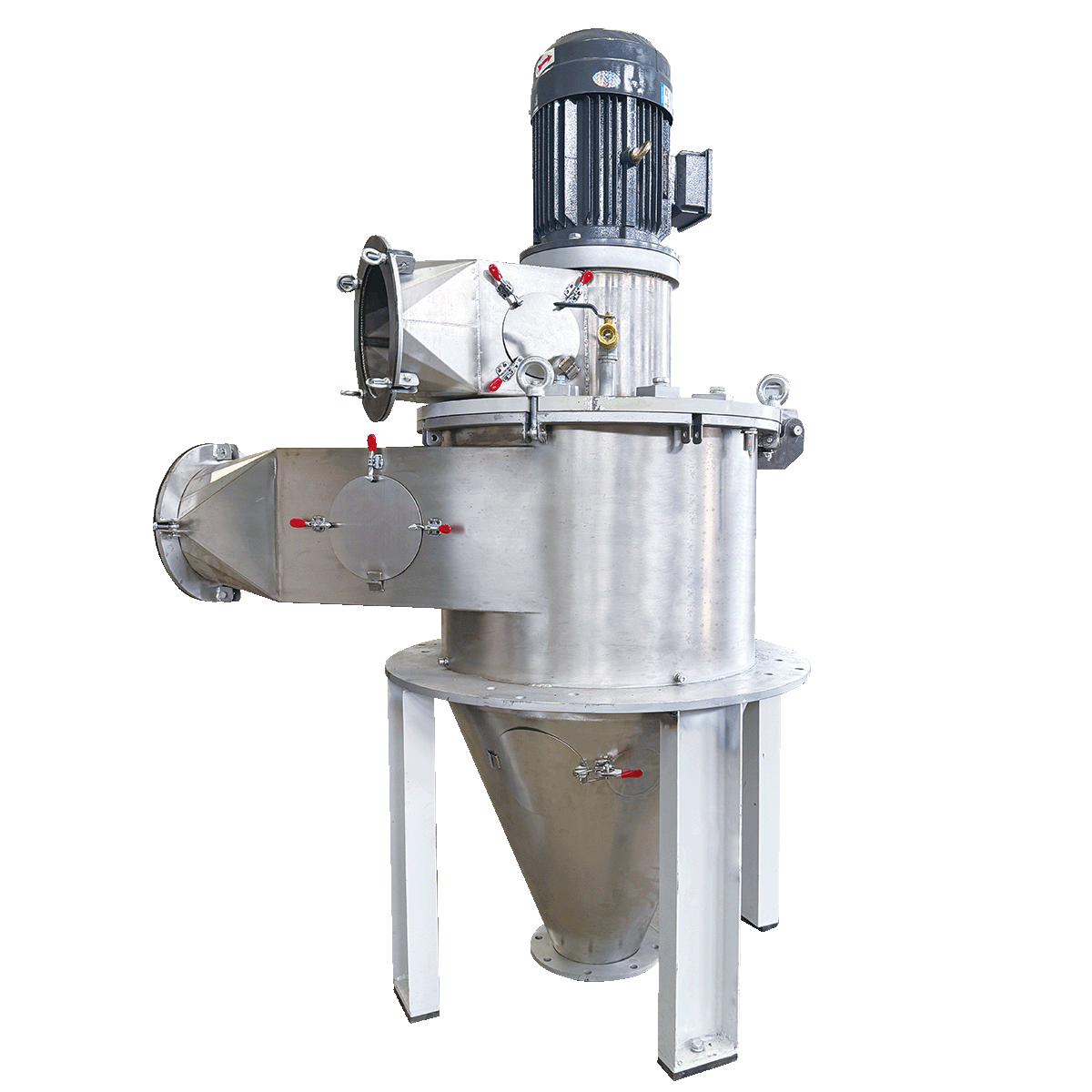

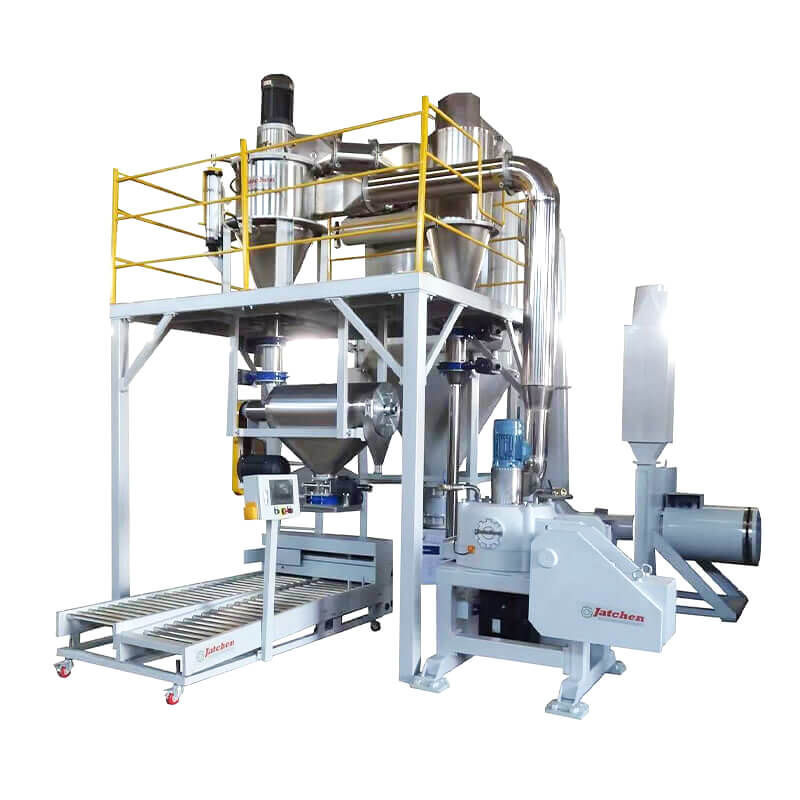

Grinding Mill - ACM GRINDING SYSTEM | Jatchen ACM grinding system (Air Classifying Mill) is a key equipment in powder coating production for fine grinding and classification of tableted materials. It integrates crushing and classifying functions: high-speed rotating impellers generate strong centrifugal force to crush flaky powder coating materials through impact and shearing. Meanwhile, its built-in air classification system classifies crushed materials based on particle size and aerodynamic...
Grinding Mill - ICM GRINDING SYSTEM | Jatchen ICM Grinding System typically comprises feeding device, grinding host, classification system, powder collection system and control system. Its workflow: flake or block semi-finished powder coatings (after tableting, etc.) are evenly fed into the grinding host via the feeding device. In the host, materials are crushed into fine powder by impact, shearing and grinding from high-speed rotating parts (e.g., grinding discs,...
Mixer - AUTOMATIC CONTAINER MIXER | Jatchen Automatic container mixer of series CM is a container movable mixer. The trolley filled with raw material will be lifted and connected tightly with the mixing parts and then mixed automatically during tilting. The trolley will return to original position while the mixing process finished. The whole process is controlled by PLC&HMI, which can mix homogeneously and get high efficiency.
Mixer - TWIN CONE BLENDER | Jatchen Twin cone blender is used for mixing materials in powder coating production. Its main body is a twin-cone container that rotates via a motor and transmission device. During mixing, components like resins, curing agents, pigments, fillers, and additives move up, down, left, and right in the rotating container, achieving full mixing to ensure uniform composition of the final powder coating,...

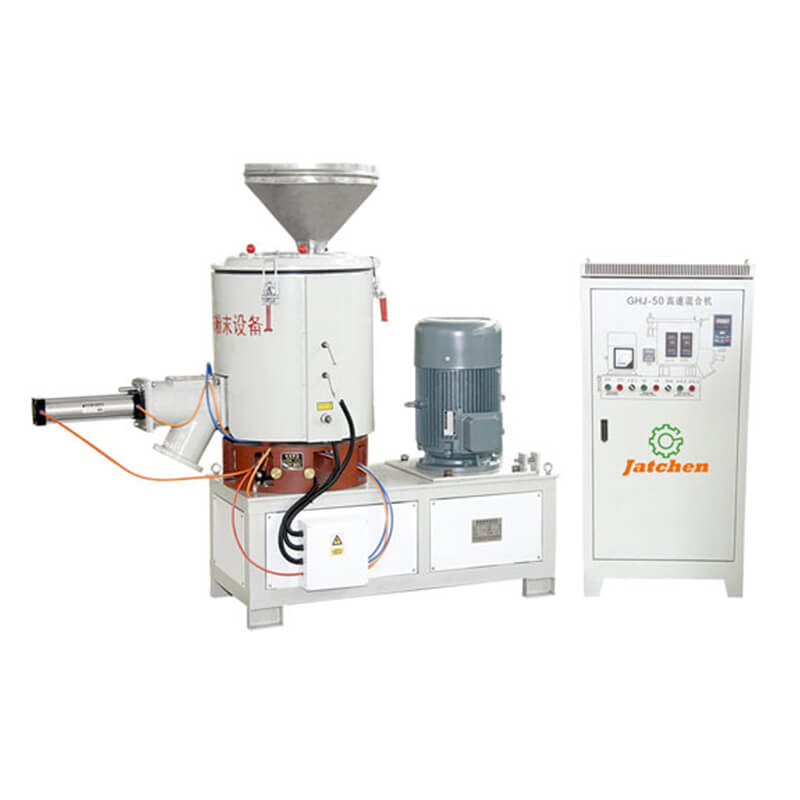

Mixer - HIGH SPEED MIXER | Jatchen High speed mixer is a specialized device in powder coating production for mixing multiple raw materials. It works via high-speed rotating stirring devices, making resins, curing agents, pigments, fillers, additives and other materials (with different properties and functions) fully contact, collide and disperse inside, mixing quickly and uniformly. This ensures the final mixture has uniform composition, providing high-quality initial materials...

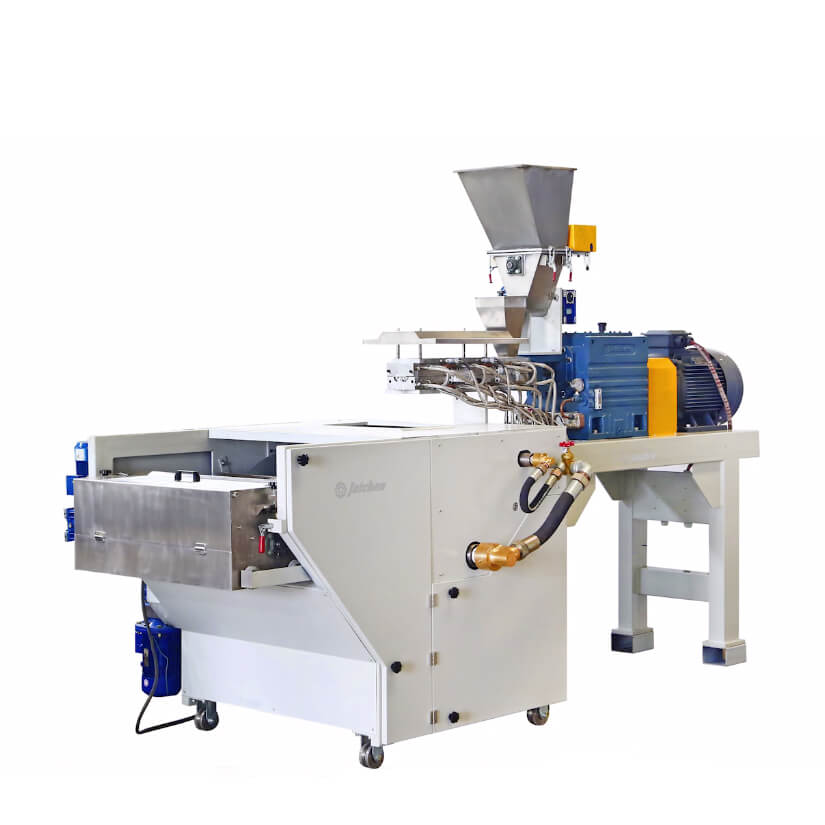

Extruder - TWIN SCREW EXTRUDER | Jatchen Twin screw extruder consists mainly of drive system, feeding device, barrel, two intermeshing screws, die head and control system. During operation, premixed powder coating raw materials enter the barrel via the feeder. Driven by the rotating screws, materials move along the screw grooves toward the die head. Meanwhile, external heaters melt the materials, and screw rotation generates shear force to...
Cooling Belt - COMPACT ROLLER | Jatchen Compact roller is a device specifically used in powder coating production to press materials (after batching, mixing, etc.) into sheets. It works by using a pair of counter-rotating rollers to squeeze loose powder coating materials into sheet products of specific thickness, width and shape under certain pressure and temperature. The pressed sheets can be easily crushed, sieved and refined later...

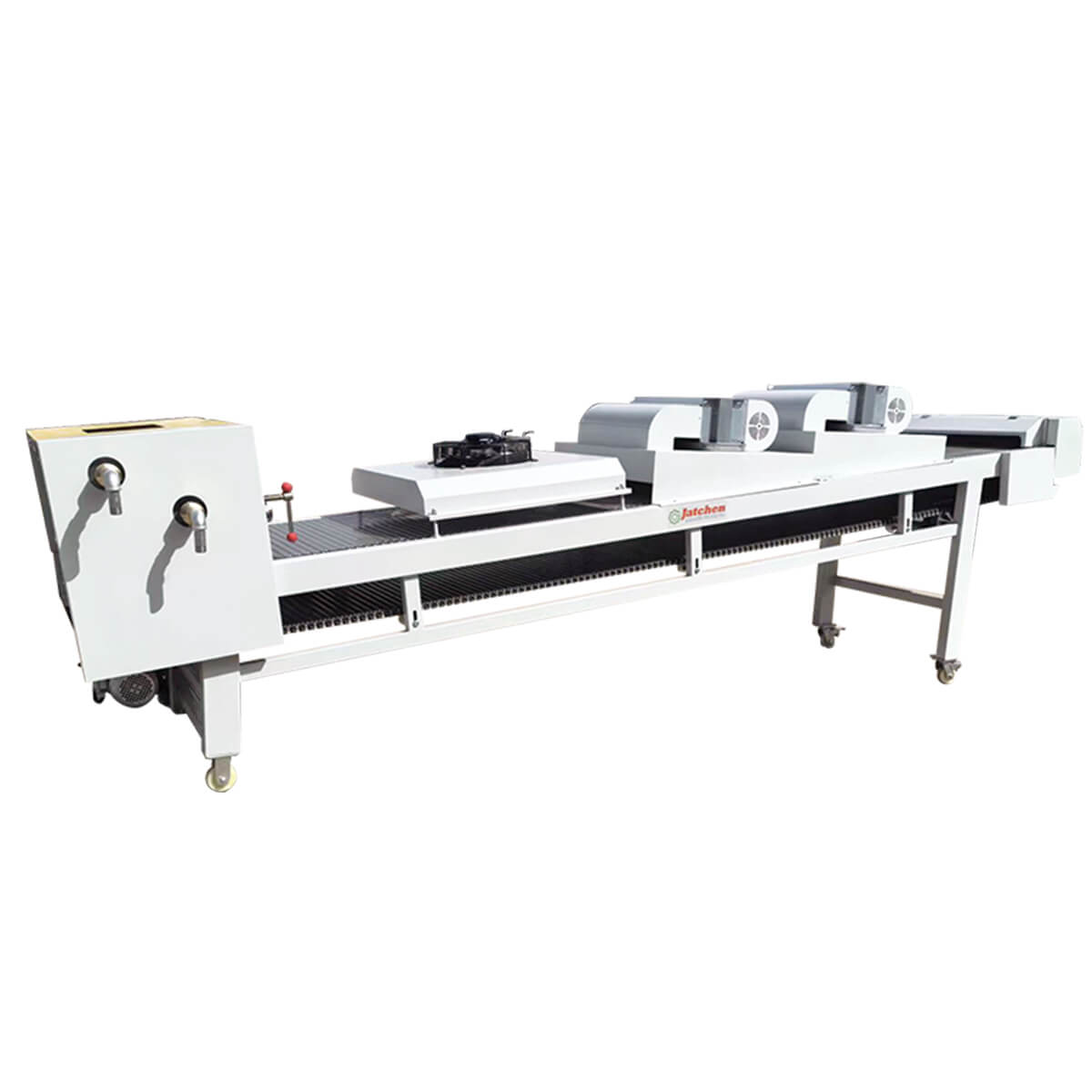

Cooling Belt - AIR COOLING BELT | Jatchen During operation, molten powder coating materials kneaded by the extruder are evenly spread on the air cooling belt’s conveyor via a dedicated feeding device. Equipped with multiple air-cooling units, the device blows cold air onto the materials as the conveyor moves them forward, rapidly cooling and solidifying the high-temperature molten materials into shaped, rigid sheets—facilitating subsequent crushing and sieving.

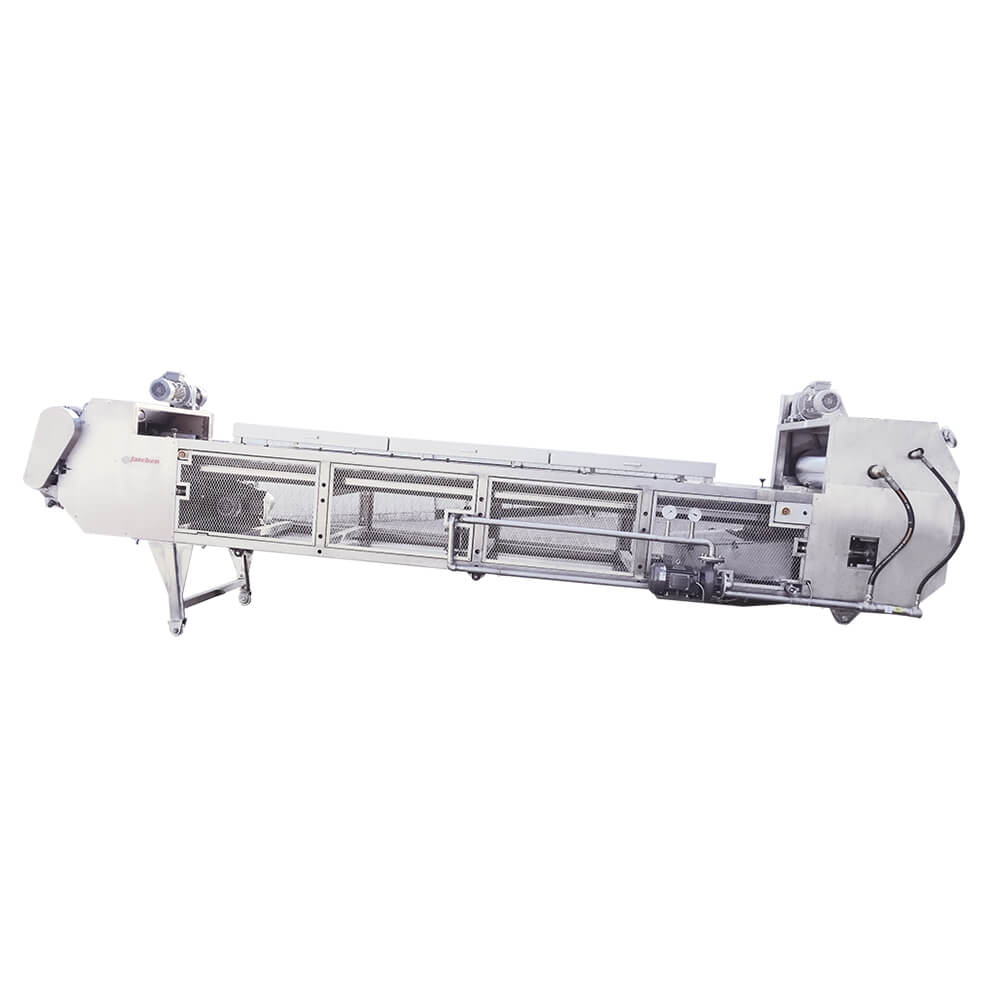

Cooling Belt - WATER COOLING BELT | Jatchen The workflow of the water cooling belt: Melt-kneaded powder coating materials from the extruder are fed into the inlet. Aided by gravity and conveyors, materials spread evenly on the running steel belt. Cooling devices (e.g., cooling rollers, water systems) under the belt rapidly cool and solidify the molten material. As the belt moves, solidified sheets are transported to the outlet,...
