6 Types of Metal Powder Coatings and How to Choose the Right Production Equipment

Metal powder coatings are not only about color. A silver, bronze, copper, sparkle, textured, or high-gloss finish may look like a simple formula choice, but production tells another story. If the metallic pigment separates, if the powder does not flow well, or if one batch looks different from the next, the final product becomes hard to control.

That is why equipment choice matters. You need the right mixer, extruder, cooling belt, grinding system, and bonding equipment for the type of powder you want to make.

Yantai Jatchen Powder Coating Processing Equipment Co., Ltd. is a professional supplier of powder coating production equipment. The company focuses on high-quality powder coating machines and complete production lines, including mixers, twin screw extruders, cooling belts, grinding systems, laboratory equipment, particle size optimization systems, and customized lean production lines. For metal powder coating producers, its Bonding Machine – BONDING MIXER is especially useful because metal pigment often needs more than ordinary mixing. When you want stable color, better powder behavior, and a more even metallic effect, bonding equipment becomes a serious part of the production plan.

Why Metal Powder Coatings Need Careful Equipment Choice

Metal powder coatings are more demanding than plain powder coatings. The metallic particles do not always behave like resin, filler, curing agent, or additive particles. Their weight, shape, and surface behavior can lead to separation or uneven appearance if the process is not controlled well.

Metallic Pigment Separation

One common problem is pigment separation. A formula may look fine during small testing, but once the batch becomes larger, metallic pigment may move away from the base powder. This can cause uneven color, weak metallic effect, or unstable finish between batches.

A normal mixer can blend materials, but bonded metallic powder often needs a stronger process. This is where a bonding machine becomes useful because it helps metallic particles attach more firmly to powder particles.

Batch Appearance Differences

Metal powder coatings usually have higher visual requirements. Small differences in brightness, shade, or sparkle can be easy to see on finished metal parts. If your customer orders the same product again, they expect the next batch to look close to the previous one.

This means your equipment must support stable mixing, steady extrusion, proper cooling, and controlled grinding. Output matters, but stable appearance matters more.

Powder Flow and Handling Problems

Poor flow can make feeding, transfer, packing, and later use more difficult. For metallic powder, flow and chargeability are also linked to coating consistency.

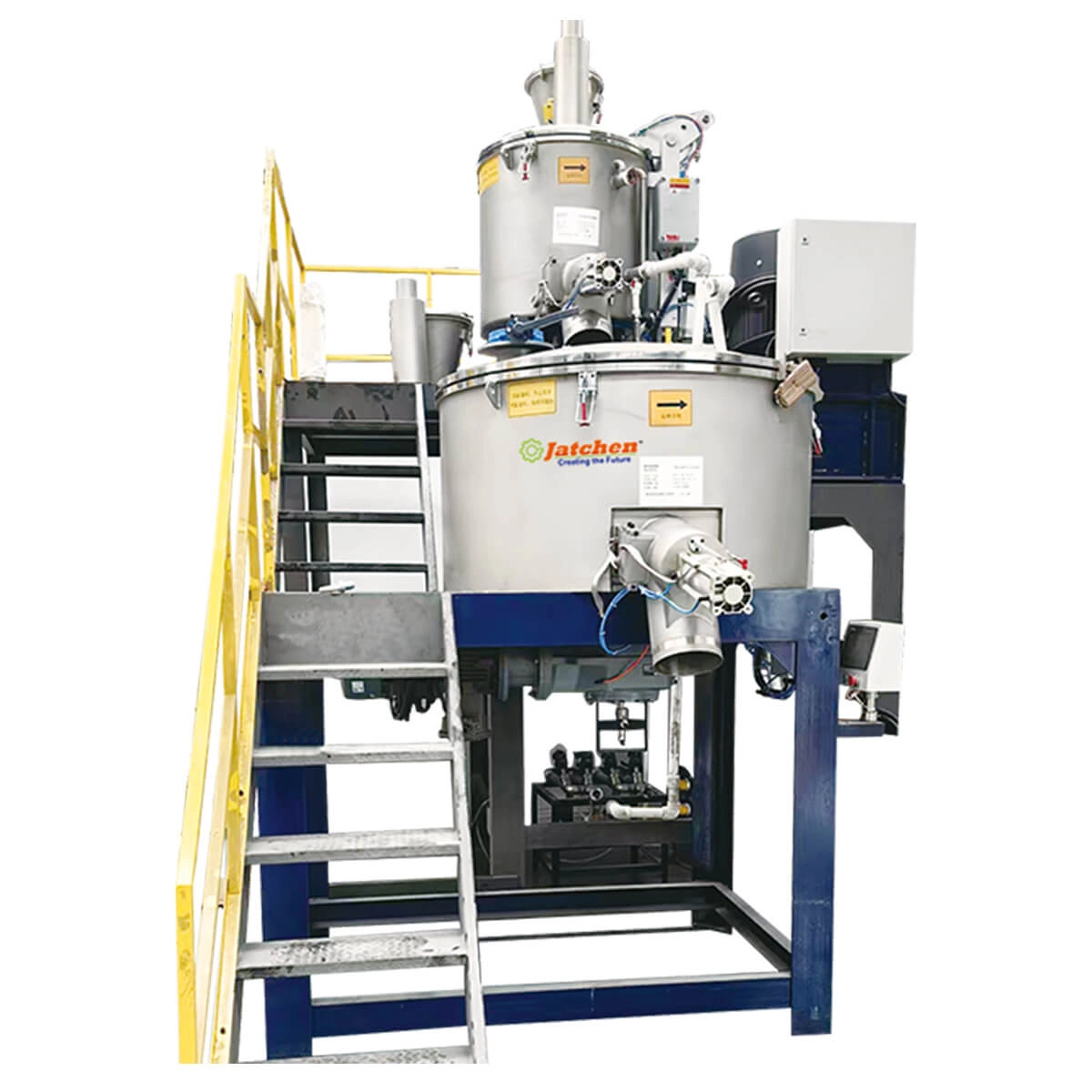

The Bonding Machine – BONDING MIXER is designed to form stable bonds between powder particles of different sizes. It can help improve powder fluidity and chargeability, which is important for high-end metal powder coating production.

What Are the 6 Types of Metal Powder Coatings?

Before you choose equipment, you need to know what kind of metal powder coating you plan to produce. Different types place different pressure on mixing, bonding, extrusion, cooling, and grinding. A coating that looks simple on the surface may need a different production setup once batch stability, particle size, and powder behavior are considered.

Standard Metallic Effect Powder Coatings

Standard metallic effect powder coatings include common silver, bronze, copper, and fine sparkle finishes. They are often used when the surface needs a clear metal look but does not require a very complex decorative effect.

For this type, the basic equipment setup usually includes a mixer, twin screw extruder, cooling belt, and grinding system. The goal is to keep raw materials evenly mixed and make the final powder stable enough for regular production.

Bonded Metallic Powder Coatings

Bonded metallic powder coatings are different from simple dry-blended powders. The bonding process helps metallic pigment attach to base powder particles more firmly. This reduces separation and helps the metallic effect stay more stable.

For this type, the BD Series Bonding Mixer is the product to focus on. It uses PLC&HMI control, VFD speed control, a propeller blade, cooling and hot water jacket, temperature display, gas checking and controlling safety device, automatic discharge valve, optional nitrogen generator, and anti-explosion protection for mixing containers. These details make it suitable for high-end metal powder production.

Dry-Blended Metallic Powder Coatings

Dry-blended metallic powder coatings are made by mixing metallic pigment with base powder after the main powder production process. This method is easier to start and may fit simple decorative effects or small-batch production.

The weakness is that metallic pigment can separate more easily during handling, storage, or later use. If you need stable color, repeatable brightness, and better batch consistency, bonded metallic powder coatings made with a Bonding Machine – BONDING MIXER are usually a better choice.

Textured Metal Powder Coatings

Textured metal powder coatings include wrinkle, hammer, sand, and other surface effects. These products do not only depend on pigment. They also depend on stable raw material mixing, suitable extrusion, and controlled grinding.

If the powder particle size is not stable, the texture may look rough in one batch and weak in another. This is why the cooling belt and grinding system should match the formula and output target.

High-Gloss Decorative Metal Powder Coatings

High-gloss decorative metal powder coatings need a smooth and clean appearance. Small differences in particle size, pigment distribution, or powder flow can affect the final look.

For this type, grinding quality becomes very important. A stable grinding system helps control final powder fineness, while better classification can reduce unstable powder behavior and support more consistent batch production.

Anti-Corrosion Metal Powder Coatings

Anti-corrosion metal powder coatings are used when durability and surface protection are important. These powders need stable mixing, proper extrusion, clean cooling, and controlled grinding so the finished powder can remain consistent.

For this type, equipment choice should not focus only on output. The full line must support stable material fusion, sheet forming, grinding, and particle size control.

How to Match Production Equipment With Metal Powder Types

A good powder coating line works like a chain. If one machine does not match the others, the whole line slows down or produces unstable powder. You should not choose equipment only by one machine’s output.

Mixer and Extruder for the Base Process

The mixer prepares the raw materials. Resins, curing agents, pigments, fillers, and additives need to be mixed evenly before they enter extrusion. Jatchen’s mixer series is designed for efficient and homogeneous mixing, with sealing structures that help reduce powder leakage.

The twin screw extruder then melts and mixes the materials into a uniform form. For metal powder coating production, stable feeding and temperature control are important because they affect later cooling and grinding.

You can review the company’s full powder coating equipment range when planning a basic or upgraded line.

Cooling Belt for Sheet Forming

After extrusion, the material must be cooled and pressed into sheets or chips. This step affects the grinding stage. If the sheet is too thick, uneven, or poorly cooled, grinding becomes harder and final powder quality may drop.

Jatchen offers cooling belt equipment such as GDJ water cooling belt and YPJ cooling belt. These machines cool and press extruded material, then crush it into chips for the grinding system. Adjustable roller speed and sheet thickness help the line handle different production needs.

Grinding System for Final Powder Quality

The grinding system controls the final powder fineness. This stage affects appearance, flow, and product consistency. Jatchen’s ACM grinding system combines grinding, air classifying, cyclone separating, sifting, and fine powder collecting.

For producers making higher-grade powder, particle size control is not a small detail. A better grinding and classification setup can help reduce unstable powder behavior and improve batch quality.

When Should You Add a Bonding Mixer?

Not every powder coating line needs a bonding machine at the beginning. But if you produce metal powder coatings, especially bonded metallic powders, the decision becomes more important.

When Dry Blending Is Not Enough

Dry blending may be acceptable for simple products or small batches. It is easier to start, but the weakness is separation. Metallic pigment can move away from the base powder during handling and later use.

If you want a more stable metallic effect, dry blending may limit your product quality. A bonding process gives you better control.

When Metallic Appearance Must Stay Stable

If your customer expects the same metallic finish every time, bonding equipment is worth considering. The process helps improve particle connection and reduces the chance of visible differences.

The Bonding Machine – BONDING MIXER is recommended for this situation because it is made for metal powder bonding, not just general mixing.

When Production Scale Starts Growing

As output grows, small process problems become bigger. A small batch issue may waste a little material, but a large batch issue can affect delivery and cost.

Jatchen provides multiple Bonding Mixer models, from smaller batch needs to larger production setups. This helps you choose a machine based on real production volume, not guesswork.

How to Choose the Right Line for Your Factory

Your best equipment setup depends on product type, output, color change frequency, workshop space, and future orders. A line that works well for one factory may not fit another.

Start With Product Type

If you mainly produce standard powder coatings, a basic production line may be enough. If you produce metallic effect powders, bonded metallic powders, or high-end decorative powders, you should plan the line with bonding and particle size control in mind.

For a full line idea, the company’s solution center shows laboratory and production line options with different capacity ranges.

Match Each Machine in the Line

Do not let one machine become the bottleneck. The mixer, extruder, cooling belt, grinder, and weighing system should match each other. If the extruder is fast but the cooling belt is too small, production will slow down. If the grinder cannot handle the chips smoothly, the line will not reach its target output.

A balanced line is usually more useful than a single large machine.

Check Real Projects and Service Support

Before buying, it is better to look at similar projects. The case center can help you compare production line ideas with real equipment use.

You should also talk about cleaning, color change, spare parts, installation, and operation training early. The service support page is a good place to start before contacting the company for a detailed plan.

Conclusion

The 6 types of metal powder coatings are not only different in color or appearance. They also need different production equipment. Standard metallic effect, bonded metallic, dry-blended metallic, textured, high-gloss decorative, and anti-corrosion metal powder coatings all need different production choices. Some need a balanced basic line, some need a Bonding Machine – BONDING MIXER, and some rely more on stable grinding, cooling, and particle size control.

For producers who want better metallic powder stability, the Bonding Machine – BONDING MIXER is one of the most important machines to consider. It helps metallic particles bond more firmly with powder particles, improves fluidity and chargeability, and supports more stable batch production.

Yantai Jatchen Powder Coating Processing Equipment Co., Ltd. offers more than one machine. It can support mixers, extruders, cooling belts, grinding systems, bonding equipment, and customized production lines for domestic powder coating producers. If you need equipment selection, line planning, technical service, or project discussion, you can reach the company through its contact page.

FAQ

Q1: What machine is used for bonded metallic powder coating production?

A1: A Bonding Machine – BONDING MIXER is used for bonded metallic powder coating production. It helps metallic particles attach more firmly to powder particles and improves powder stability.

Q2: Can a normal mixer replace a Bonding Mixer?

A2: A normal mixer can blend raw materials, but it cannot fully replace a Bonding Mixer when you need stable bonded metallic powder. The bonding process is more suitable for high-end metal powder coatings.

Q3: What equipment is needed for metal powder coating production?

A3: A typical line may include a mixer, twin screw extruder, cooling belt, grinding system, particle size optimization system, automatic weighing system, and Bonding Mixer for bonded metallic powder.

Q4: How do you choose the right powder coating production line?

A4: You should choose based on product type, output target, color change needs, workshop space, and future production plan. Machine capacity should be balanced across the whole line.

Q5: Why choose Yantai Jatchen Powder Coating Processing Equipment Co., Ltd.?

A5: The company focuses on powder coating production equipment and can provide single machines as well as customized lean production lines. Its Bonding Machine – BONDING MIXER is especially suitable for high-end metallic powder coating production.
