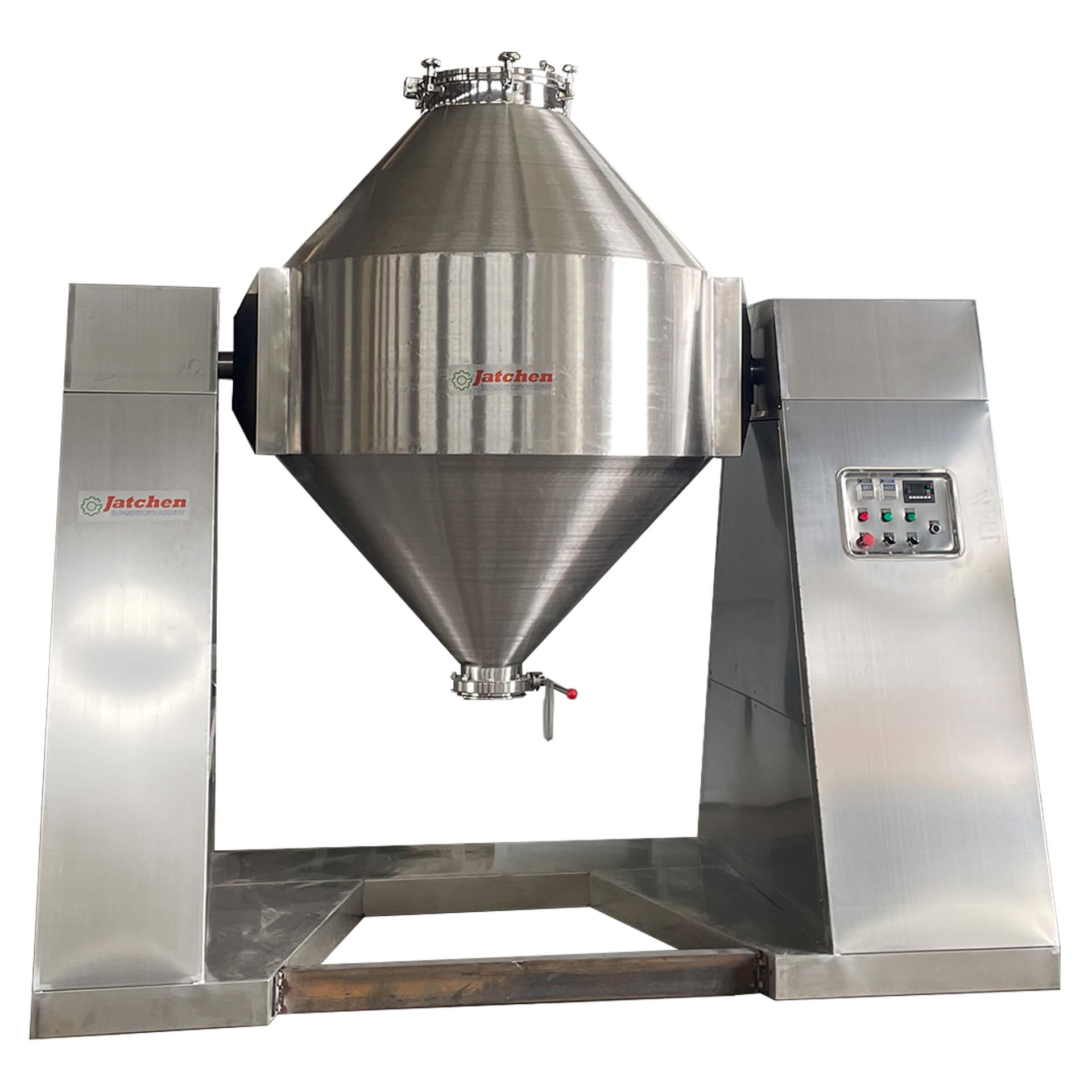

Mixer – TWIN CONE BLENDER | Jatchen
Description

Twin cone blender is used for mixing materials in powder coating production. Its main body is a twin-cone container that rotates via a motor and transmission device. During mixing, components like resins, curing agents, pigments, fillers, and additives move up, down, left, and right in the rotating container, achieving full mixing to ensure uniform composition of the final powder coating, meeting production and application requirements.

Product Parameters
 Model Mixing Time
(min)
Motor
(kW)
Output
(kg/h)
Inlet&
Outlet
Dimension
(mm*mm*mm)
SHJ300 6-9r/m VFD 2.2 50-150 DN400/DN150 1600*1300*1800
SHJ500 6-9r/m VFD 3 100-250 DN400/DN150 1900*1600*2000
SHJ1000 6-9r/m VFD 5.5   300-1000 DN400/DN200 3100*2000*2600
SHJ2000 6-9r/m VFD 7.5   800-1000 DN500/DN200 3000*2600*2900
Features

High mixing uniformity: During rotation, materials form complex trajectories with axial tumbling and radial diffusion. This unique movement fully blends materials of different densities and particle sizes, ensuring high uniformity, consistent performance and color of powder coatings, and reducing quality variations in spraying.



Low wear: Unlike high-speed stirring mixers, it relies on container rotation for mixing. The relative movement between materials and with the container wall is gentle, causing little wear to materials. It is especially suitable for mixing powder coatings prone to performance changes from friction (e.g., those with special additives or pigments), effectively preserving their original properties.



Easy cleaning: With a simple structure and no complex stirring blades inside, the polished smooth inner wall prevents material adhesion. The well-designed discharge port enables quick unloading with minimal residue, facilitating thorough cleaning between batches to avoid cross-contamination of different formulas.



Good sealing: Adopting a reliable sealing structure, it effectively prevents powder leakage during mixing, protecting the production environment, reducing material waste, and meeting environmental and safety standards. It also shields moisture-sensitive materials from external factors.



Simple operation: Equipped with an intuitive interface for setting rotation speed and mixing time, with easy start/stop. It runs stably with low failure rates, simplifying daily maintenance and reducing operator workload and maintenance costs.



Wide applicability: Suitable for mixing powder coatings in various batches, from small lab tests to large-scale industrial production. By adjusting parameters, it works well with materials of different formulas and physical properties (e.g., fluidity, particle size distribution).
