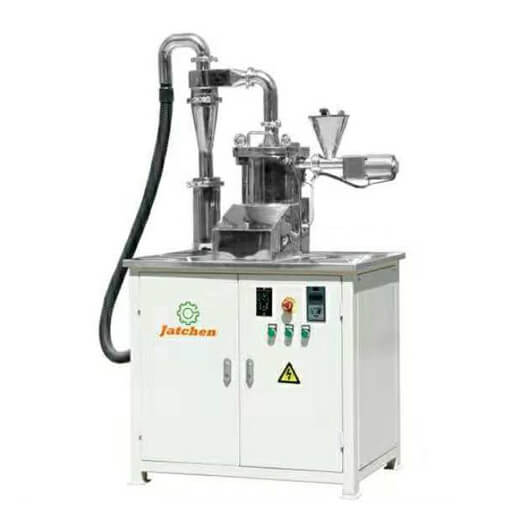

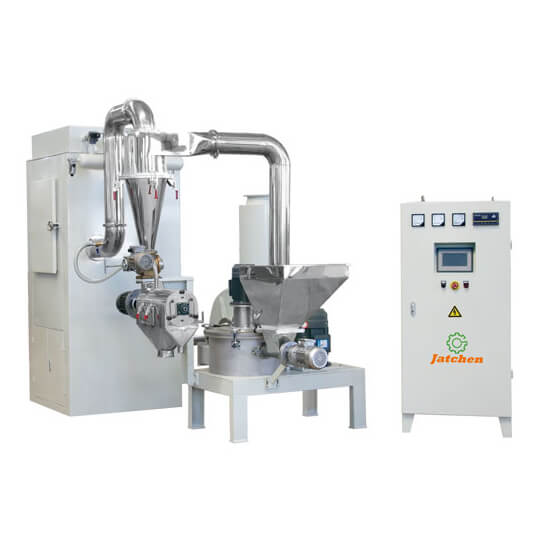

A lab grinder is a jet mill, specially designed for laboratories to obtain powders with specific particle size requirements. It can refine raw block-shaped and granular materials, serving fields like chemical analysis, material science research, and pharmaceutical R&D.
| Model | Output (kg/h) |
Main Motor (kW) |
Feeder Motor (kW) |
Fan Motor (kW) |
Dust Collector |
Dimension (mm*mm*mm) |
| ACM02 | 2-4 | 1.5VFD | 60 VFD | 2.2 VFD | Built-in film-coated iter cartridge(4pcs) |
1100*860*1570 |
| ACM02&CC02 | 2-4 | 1.5VFD | 60 VFD | 2.2 VFD | Built-in film-coated iter cartridge(4pcs) |
1100*1000*1850 |
• High-precision grinding: Precisely controls grinding degree and powder particle size distribution. For strict raw powder particle size requirements, it can grind materials to micron-level to ensure uniformity and effectiveness.
• Compact design: Small in size, takes up little space, suitable for limited laboratory spaces, and easy for researchers to operate.
• Quality diverse materials: Parts in contact with materials are made of 304 stainless steel, with good corrosion and wear resistance, avoiding material contamination and extending equipment life.
• Easy operation: Equipped with user-friendly interface; some high-end models have automatic control, allowing setting grinding time, speed, etc., with one-key start, reducing operator workload and difficulty.
• Easy cleaning: Reasonable structure, easy to disassemble and clean, preventing cross-contamination between different batches, ensuring accurate experimental results—especially important for frequent material changes.
• High grinding efficiency: Despite being small, it finishes grinding in a short time. Optimized grinding media and rotation speed greatly improve efficiency, saving experiment time.
• Good safety: Equipped with complete safety devices, such as overload protection, leakage protection, and lid-open shutdown, effectively ensuring operator safety and normal equipment operation.
